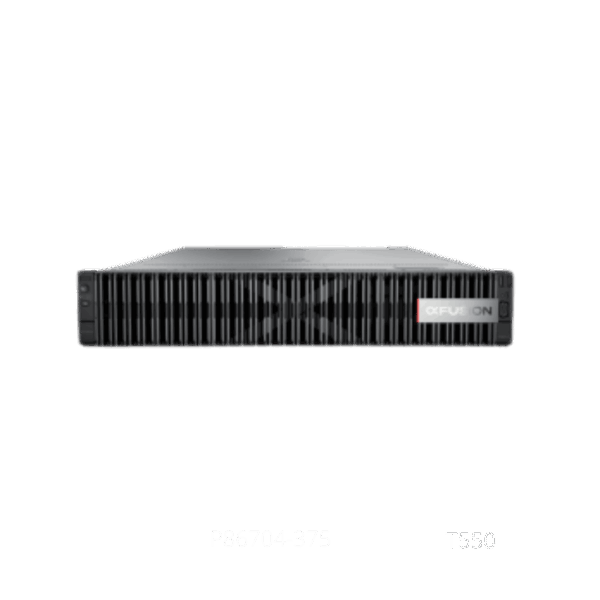

Server xFusion 2288H V7 Intel Xeon Scalable 5th Gen 32GB

Form Factor : 2U rack server

Processor : 1 or 2 x 4th or 5th Gen Intel® Xeon® Scalable processors with TDP up to 385 W per processor

Chipset : Emmitsburg PCH

Memory : 32 x 5600 MT/s DDR5 DIMMs and 16 x DDR5 DIMMs supported by the CXL technology; up to 48 x DIMMs*

Local Storage : Hot-swappable drives with the following configuration options are supported:

• 8 to 33 x 2.5ʺ SAS/SATA/SSD drives

• 12 to 18 x 3.5ʺ SAS/SATA drives

• 4/8/16/24 x NVMe SSDs

• Up to 45 x 2.5ʺ drives, or 28 x full NVMe SSDs*

• 2 x M.2 SSDs, hardware RAID, and hot swap

RAID : RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration

Network : Expansion capability of multiple types of networks

OCP 3.0 NICs are supported. Both two FlexIO card slots support two OCP 3.0 NICs, which can be configured as required. Hot swap is supported

PCIe Expansion : Up to 19 x PCIe slots: 2 x FlexIO slots dedicated for OCP 3.0 NICs and 17 x standard PCIe expansion slots*, 8 slots of which support PCIe 5.0

GPU Card : 4 x dual-width or 14 x single-width GPU cards*

Fan Module : 4 x hot-swappable counter-rotating fans in N+1 redundancy

Power Supply : 900 W/1200 W/1500 W/2000 W/3000 W Platinum/Titanium hot-swappable PSUs in 1+1 redundancy

Management : The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening

• The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management interface based on HTML5/VNC KVM, and supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management

• It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies and realizes intelligent, automated, visualized, and refined management throughout the lifecycle

OS : FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, and openEuler . For more, click here

Security : Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security bezel, secure boot, and chassis intrusion detection

Operating Temperature : 5ºC to 50ºC (41ºF to 122ºF), compliant with ASHRAE Classes A1, A2, A3, and A4

Certification : CE, NRTL, CCC, FCC, VCCI, and RoHS

Installation Suite : L-shaped guide rails, adjustable guide rails, and holding rails

Dimensions (H x W x D) : Chassis with 3.5ʺ drives: 86.1 mm x 447 mm x 798 mm (3.39 in. x 17.60 in. x 31.42 in.)

Chassis with 2.5ʺ drives: 86.1 mm x 447 mm x 798 mm (3.39 in. x 17.60 in. x 31.42 in.)
